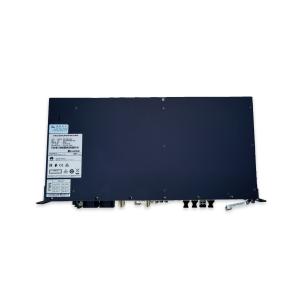

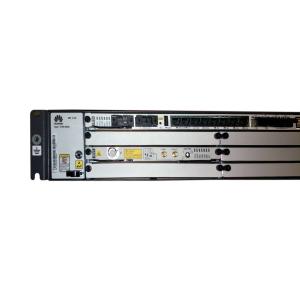

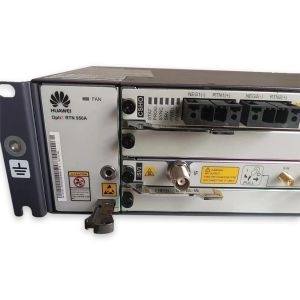

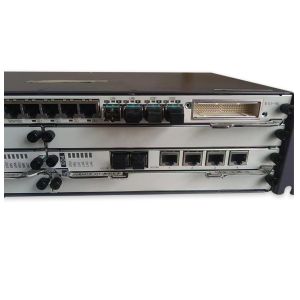

6-42 GHz Outdoor and Indoor Split Type IP Microwave with CSHOF Main Control Board Model

Ask Lasest Price
Model Number :	RTN950A
Brand Name :	Other
Supply Ability :	1000 Carton/Cartons per Day
Price :	$1,161.39/sets 1-19 sets

Add to Cart

Product Details
Company Profile

6-42 GHz Outdoor and Indoor Split Type IP Microwave with CSHOF Main Control Board Model

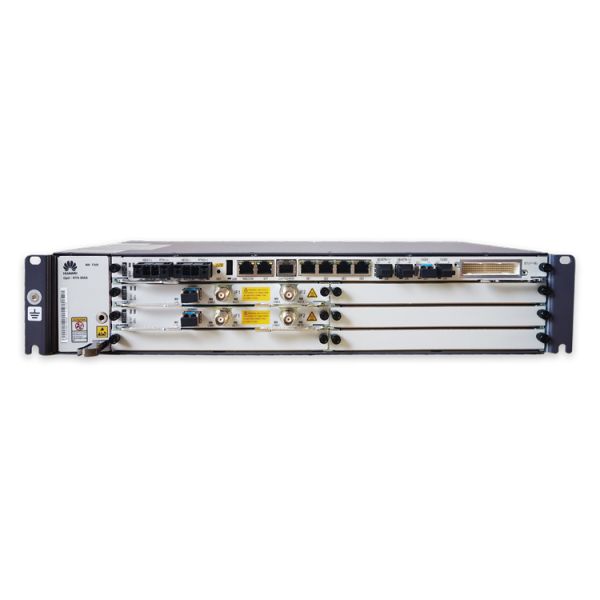

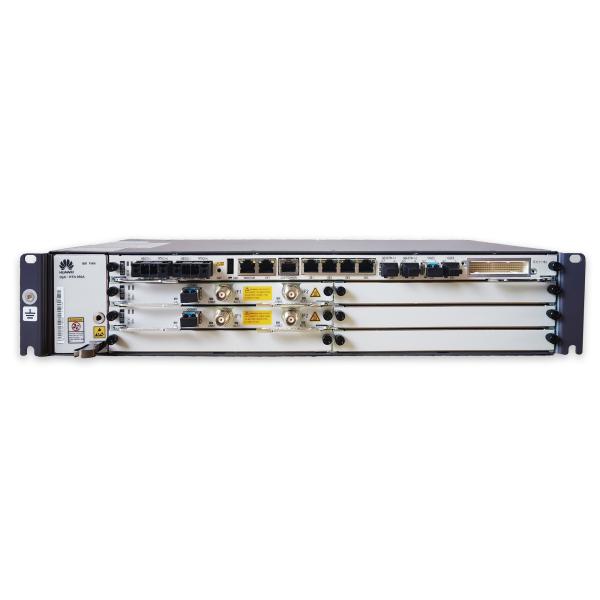

Product display

RTN950A

code Model Basic configuration

02311DEN SLFMSITE08 RTN 950A Basal Configuration 4*GE(RJ45)+2*GE(SFP)+16*E1+2*STM-1(SFP) Include IDU Installation Materials

Products Description

Network layer	Suitable for: access layer and aggregation layer
Frequency band	6 ~ 42 GHz
Channel spacing	3.5/ 7/14/28/40/56/112 MHz
Bandwidth	Determine based on ODU bandwidth
Modulation mode	QPSK Strong，QPSK，16QAM Strong，16QAM，32QAM， 64QAM，128QAM，256QAM，512QAM，512QAM Light， 1024QAM，1024QAM Light，2048QAM，4096QAM
Maximum number of RFUs	Based on the RTN950A technical specifications
RF direction	12
Air port capacity	Single carrier 1166~2500 Mbit/s (non XPIC)
Exchange capacity	90 Gbit/s (using CSHOF), 10 Gbit/s (using CSHO)
TDM交叉容量	32×32 VC-4
Link Aggregation	2-4
Interface type	E1，T1，STM-1（e/o），FE（e/o），GE（e/o）， 2.5GE（o），10GE（o）
Transmission power @ QPSK	Based on the RTN950A technical specifications
Super Dual Band	Based on the RTN950A technical specifications
L3 VPN	Based on the RTN950A technical specifications
Support eCPRI	Based on the RTN950A technical specifications
RF configuration method	N+0 N×（1+0） 1+1 N+1 XPIC 2 × 2 CA 4 ×4 MIMO
Function	Ethernet II, IEEE 802.3 and IEEE 802.1q/p field addition/deletion, and VLAN label exchange (IEEE 802.1q/p) ISIS, OSPF, BGP, RSVP, LDP Support for flow control (IEEE 802.3x) Support Link Aggregation Group (IEEE 802.3ad LAG and L1 LAG) RMON (IETF RFC 2819)
Business type	Native ETH service: E-Line dedicated line service and E-LAN private network service PW based Native ETH services: E-Line dedicated line services, Ethernet aggregation services, E-LAN private network services (VPLS, representing virtual private network services) L3VPN, L2VPN (VLL), CES, MCE
Key Features	CES E1, IEEE 1588v2, USB start, H-QoS, PLA/EPLA/EPLA+, AES-256 encryption, device anti-theft, 1+1, N+1, XPIC, AM, TDM, PWE3/MPLS, SDB, L3VPN, CA, MIMO
Antenna	Parabolic antenna: 0.3m~3.7m
IDU weight	5.4 kg（1+0） 6.2 kg（1+1）
IDU size	442 mm × 220 mm × 88 mm
Environment	Temperature: IDU -5 °C ~+60 °C ； ODU -33 °C ~ +55 °C Humidity: IDU 5%~95%； ODU 5%~100%
Power supply	-38.4 V~-57.6 V
Authenticated document	CE、RCM、 FCC、IC、ETL、MCMC
