1 Wireless Microwave OptiX RTN 910A RTN910A SLJ1CSHRF 2GE RJ45 10GE SFP E1 2 Way IF Single Board 03025DJV

Ask Lasest Price
Model Number :	RTN 910A
Brand Name :	for hua wei, for hua wei
Price :	$4,000.00/units >=2 units

Add to Cart

Product Details
Company Profile

1 Wireless Microwave OptiX RTN 910A RTN910A SLJ1CSHRF 2GE RJ45 10GE SFP E1 2 Way IF Single Board 03025DJV

Product Video

Product display

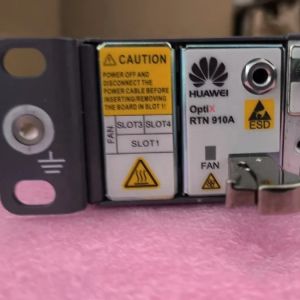

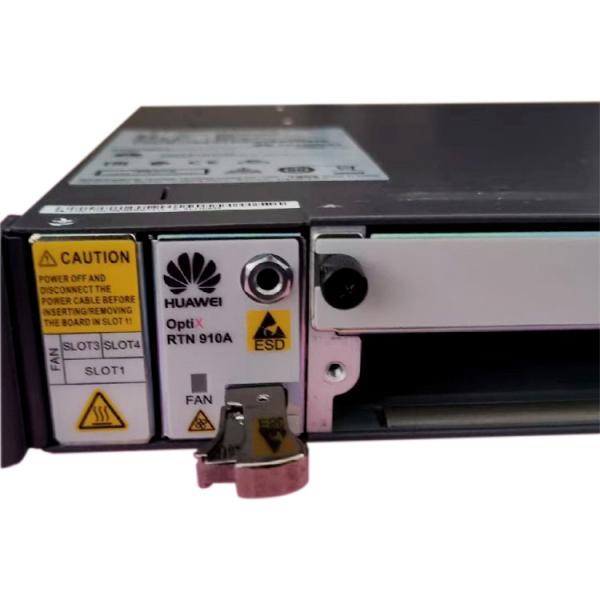

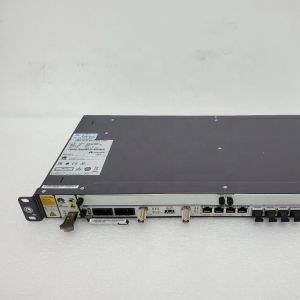

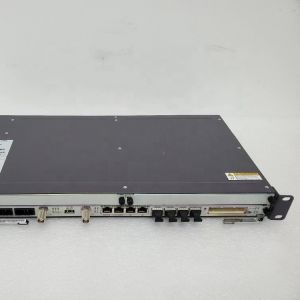

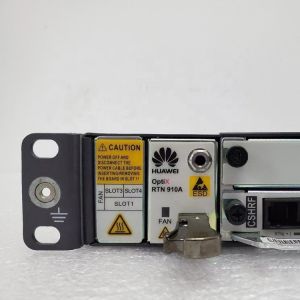

OptiX RTN 910A

Single board OptiX RTN 910A-SLJ1CSHRF-2 * GE (RJ45)+4 * 10GE (SFP+)+16 * E1+2 intermediate frequency unit single board

Products Description

Network layer	Suitable for: access layer and aggregation layer
Frequency band	6 ~ 42 GHz
Channel spacing	3.5/ 7/14/28/40/56/112 MHz
Bandwidth	Determine based on ODU bandwidth
Modulation mode	QPSK Strong，QPSK，16QAM Strong，16QAM，32QAM， 64QAM，128QAM，256QAM，512QAM，512QAM Light， 1024QAM，1024QAM Light，2048QAM，4096QAM
Maximum number of RFUs	Based on the RTN910A technical specifications
RF direction	6
Air port capacity	Single carrier 1166~2500 Mbit/s (non XPIC)
Exchange capacity	90 Gbit/s (using CSHOF), 10 Gbit/s (using CSHO)
TDM交叉容量	32×32 VC-4
链路聚合	2-4
接口类型	E1，T1，STM-1（e/o），FE（e/o），GE（e/o）， 2.5GE（o），10GE（o）
发射功率 @QPSK	Based on the RTN910A technical specifications
超级双频	Based on the RTN910A technical specifications
L3 VPN	Based on the RTN910A technical specifications
支持eCPRI	Based on the RTN910A technical specifications
射频配置方式	N+0 N×（1+0） 1+1 N+1 XPIC 2 × 2 CA 4 ×4 MIMO
功能	Ethernet II, IEEE 802.3 and IEEE 802.1q/p field addition/deletion, and VLAN label exchange (IEEE 802.1q/p) ISIS, OSPF, BGP, RSVP, LDP Support for flow control (IEEE 802.3x) Support Link Aggregation Group (IEEE 802.3ad LAG and L1 LAG) RMON (IETF RFC 2819)
业务类型	Native ETH service: E-Line dedicated line service and E-LAN private network service PW based Native ETH services: E-Line dedicated line services, Ethernet aggregation services, E-LAN private network services (VPLS, representing virtual private network services) L3VPN, L2VPN (VLL), CES, MCE
关键特性	CES E1, IEEE 1588v2, USB start, H-QoS, PLA/EPLA/EPLA+, AES-256 encryption, device anti-theft, 1+1, N+1, XPIC, AM, TDM, PWE3/MPLS, SDB, L3VPN, CA, MIMO
天线	Parabolic antenna: 0.3m~3.7m
IDU重量	5.4 kg（1+0） 6.2 kg（1+1）
IDU规格	442 mm × 220 mm × 88 mm
环境	Temperature: IDU -5 °C ~+60 °C ； ODU -33 °C ~ +55 °C Humidity: IDU 5%~95%； ODU 5%~100%
电源	-38.4 V~-57.6 V
证书	CE、RCM、 FCC、IC、ETL、MCMC

SLJCSHR01	Single board software - SLJ1CSHR-SLJCSHR01- Main control exchange processing board software package - And Flash IMAGE - Burning type	05021TRA
SLJ1CSHR01	Functional module - OptiX RTN 910A-SLJ1CSHR01-16 * E1 (Native TDM)/4 * GE (RJ45)/2 * GE (SFP)/2 * IF IDU module (-48VDC) -910A	02311FCA
SLJCSHR02	Single board software - SLJ1CSHR-SLJCSHR02- Main control switch board software package - NorFlash - Burning type	05021SSY
SLJCSHR03	Single board software - SLJ1CSHR-SLJCSHR03- Main control switch board logic software - CPLD - loading type	05021SXT
SLJCSHR12	Single board software - SLJ1CSHR-SLJCSHR12- Main control switch board logic software - FPGA - loading type	05021UAM
SLJCSHR10	Single board software - SLJ1CSHR-SLJCSHR10- Main control switch board logic software - FPGA - loading type	05021UAL
SLJ1CSHRF	Produced board - OptiX RTN 910A-SLJ1CSHRF-2 * GE (RJ45)+4 * 10GE (SFP+)+16 * E1+2 intermediate frequency unit single board	03025DJV
SLJCSHRFA02	Single board software - SLJ1CSHRFA-SLJCSHRFA02- Main control integrated intermediate frequency unit board software package - NandFlash burning type	05022ULC
SLJCSHRFA01	Single board software - SLJ1CSHRFB-SLJCSHRFB01- Main control integrated intermediate frequency unit board software package - SPI NorFlash - Burning type	05024ANY
