Outdoor RTN 510AP RTN 510RT Outdoor E-band Cabinet System Wireless Microwave Equipment

Ask Lasest Price
Model Number :	RTN 510AP;RTN 510RT
Brand Name :	HW
Supply Ability :	1000 Carton/Cartons per Day
Price :	$7,700.00/sets 2-49 sets

Add to Cart

Product Details
Company Profile

Outdoor RTN 510AP RTN 510RT Outdoor E-band Cabinet System Wireless Microwave Equipment

PRODUCT DESCRIPTION

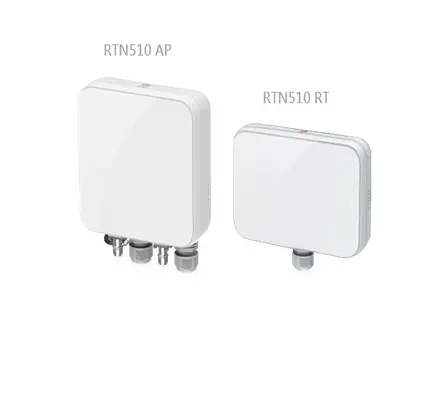

OptiX RTN 510 HW Public Spectrum Point-to-Multipoint Microwave

HW unlicensed PMP microwave RTN510 works in 4.91 to 5.97 GHz unlicensed frequency, and it can be flexible deployed in LOS (Line-of-Sight) and NLOS (Non-Line-of-Sight) scenarios. It support sector networking and linear networking, suit for large-scale coverage and linear scenarios, such as video surveillance in safe city, railway and highway, etc.

RTN510 PMP network is networked by one AP (Access Point, including AP equipment and sector antenna) connecting with up to 32 RTs (Remote Terminals), and each AP could provide total max. 750 Mbps capacity. For PTP network, it adapt same AP as PMP while adding external directional antenna for long distance transmission, and it also support max. 750Mpbs capacity.

TECHNICAL SPECIFICATION

Main specifications of RTN 510
RF Performance
Model Number	AP (Access Point)	RT (Remote Terminal)
Frequency Range	5 GHz: 4910-5970 MHz
Channel Spacing	10 \| 20 \| 40 \| 80 MHz
Modulation Schemes	MCS0 (BPSK)-MCS9 (256QAM)
RF Functions	GPS Synchronization; DFS (Dynamic Frequency Selection); AM (Adaptive Modulation)
Antenna gain	17dBi (PMP), 22dBi (PTP)18dBi (PMP), 23dBi (PTP)	16dBi17dBi
Throughput	Up to 750 Mbps*	Up to 250 Mbps*
System Performance
Ports	1 * GE (o), 1 * GE (e), 1 * GE (PoE)	1* GE (PoE)
Dimensions(H x W x D)	204 mm x 204 mm x 65 mm	241 mm x 168 mm x 52 mm
Weight	2.7 kg	1.8 kg
Power Consumption	26W, typical	10.5W, typical
Power Supply	AC/DC/PoE
Lightning Protection	10KV (EN 61000-4-5)
Dying gasp	support
Ethernet Performance
Service Type	E-Line , E-LAN
VLAN	IEEE 802.1q , IEEE 802.1p
QinQ	Support
Ethernet OAM	802.1ag, 802.3ah
QoS	Service classification by DSCP, CoS SP+WRR Port shaping 8-class QoS	Service classification by DSCP, CoSSP Port shaping 8-class QoS
Network Management
NMS	Web Server, Mobile phone management, eSight, U2000
Environment
Protection class	IP67
Operation Temperature	–40ºC ~ +60ºC
Corrosion resistance of salt mist	Comply IEC 60068-2-11, with highest standard of 4 weeks of salt mist corrosion test, applicable to the oshore scene
Security
Encryption	AES 256bit
RT access control	MAC address-based white list
Authentication	RADIUS
The actual deployment specications need to be determined by network planning.
