2023 Innovative IP Microwave RTN 950A Long Range Split Type Outdoor and Indoor Equipment

Ask Lasest Price
Model Number :	RTN 950A
Brand Name :	Other
Supply Ability :	1000 Carton/Cartons per Day
Price :	$1,278.00/sets 1-9 sets

Add to Cart

Product Details
Company Profile

2023 Innovative IP Microwave RTN 950A Long Range Split Type Outdoor and Indoor Equipment

PRODUCT DESCRIPTION

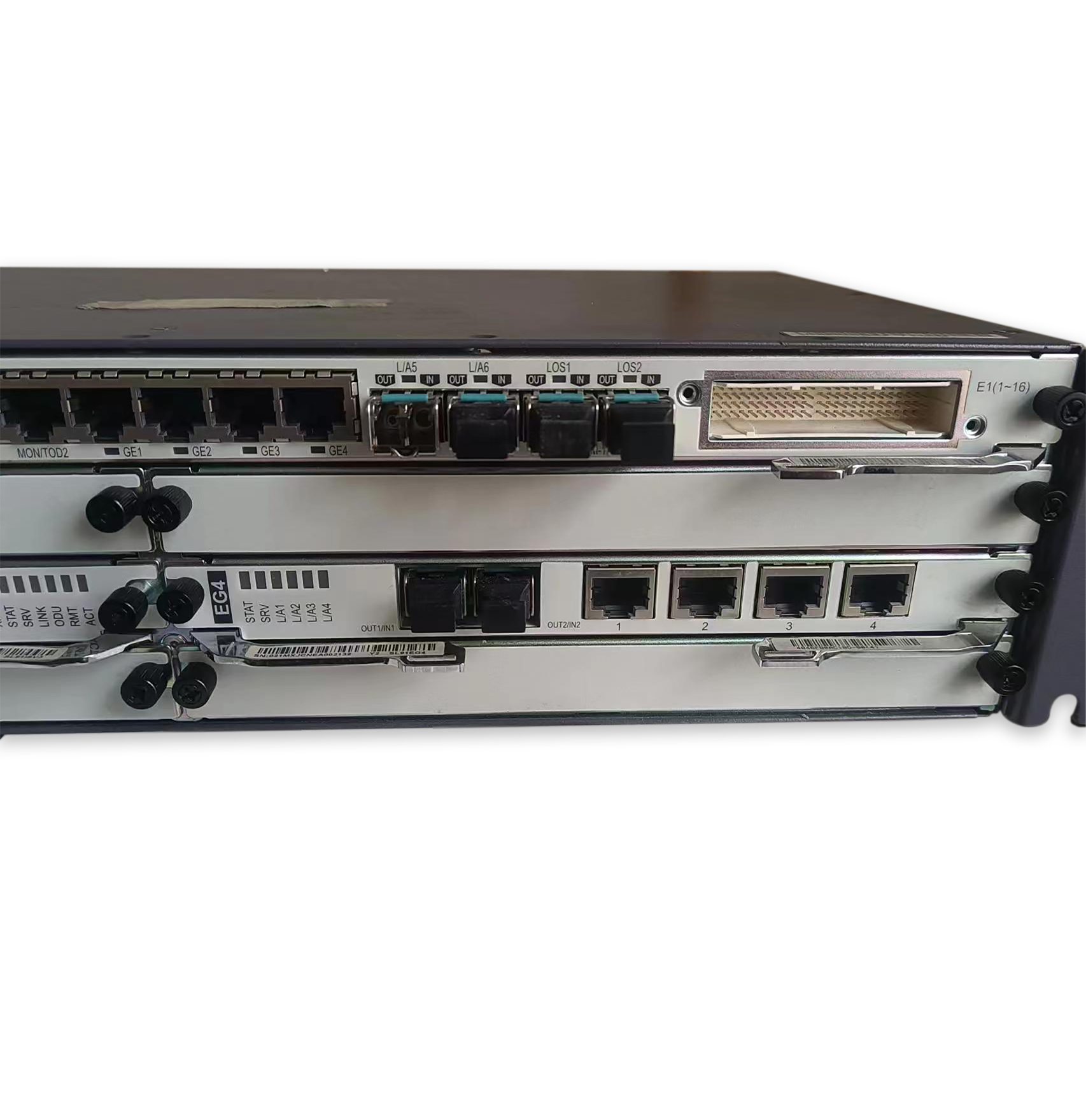

Split Type Long Range Microwave Transmission Equipment Assembly IDU RTN 950A

The Huawei 6–42 GHz traditional frequency IP microwave has a maximum of 2 Gbit/s per carrier and 16 Gbit/s per antenna ultra-large transmission capacity, it is the industry’s first IP microwave that supports TDM/Hybrid/Packet/Routing services on the unified platform, satisfying the requirements of large-capacity IP service transmission and IP-based evolving of traditional PDH/SDH microwave. The solution provides a flexible architecture that can be deployed in split, full-outdoor, or full-indoor scenarios. It features high reliability and end-to-end unified O&M management. It is widely used in broadband wireless transmission in vertical sectors, such as government, broadcasting, oil & gas, education, and electric power.

TECHNICAL SPECIFICATION

Model number	RTN950A
Application	Wireless long-distance transmission
Network layer	Suitable for: access layer and aggregation layer
Frequency band	6 ~ 42 GHz
Channel spacing	3.5/ 7/14/28/40/56/112 MHz
Channel bandwidth	Determine based on ODU bandwidth
Modulation mode	QPSK Strong，QPSK，16QAM Strong，16QAM，32QAM， 64QAM，128QAM，256QAM，512QAM，512QAM Light， 1024QAM，1024QAM Light，2048QAM，4096QAM
Maximum number of RFU's	Based on the RTN950A technical specifications
Radio-frequency direction	12
Orifice Orifice capacitycapacity	Single carrier 1166 ~ 2500 Mbit/s (non-XPIC)
Orifice capacity	90 Gbit/s (using CSHOF), 10 Gbit/s (using CSHO)
TDM crossover capacity	32*32 VC-4
Link aggregation	Routes 2-4
Interface type	E1，T1，STM-1（e/o），FE（e/o），GE（e/o）， 2.5GE（o），10GE（o）
Transmit power @QPSK	Based on the RTN950A technical specifications
Super dual frequency	Based on the RTN950A technical specifications
L3 VPN	Based on the RTN950A technical specifications
ECPRI support	Based on the RTN950A technical specifications
Rf configuration mode	N+0 N（1+0） 1+1 N+1 XPIC 2 2 CA 4 *4 MIMO
Function	Ethernet II, IEEE 802.3 and IEEE 802.1q/p field addition/deletion, and VLAN label exchange (IEEE 802.1q/p) ISIS, OSPF, BGP, RSVP, LDP Support for flow control (IEEE 802.3x) Support Link Aggregation Group (IEEE 802.3ad LAG and L1 LAG) RMON (IETF RFC 2819)
Business type	Native ETH service: E-Line dedicated line service and E-LAN private network service PW based Native ETH services: E-Line dedicated line services, Ethernet aggregation services, E-LAN private network services (VPLS, representing virtual private network services) L3VPN, L2VPN (VLL), CES, MCE
Key characteristic	CES E1, IEEE 1588v2, USB start, H-QoS, PLA/EPLA/EPLA+, AES-256 encryption, device anti-theft, 1+1, N+1, XPIC, AM, TDM, PWE3/MPLS, SDB, L3VPN, CA, MIMO
Antennae	Parabolic antenna: 0.3m~3.7m
IDU weight	5.4 kg（1+0） 6.2 kg（1+1）
IDU specification	442 mm * 220 mm * 88 mm
Environment	Temperature: IDU -5 °C ~+60 °C ； ODU -33 °C ~ +55 °C Humidity: IDU 5%~95%； ODU 5%~100%
Power supply	-38.4 V~-57.6 V

MAIN PRODUCTS

COMPANY PROFILE

WHY CHOOSE US

EXHIBITION

CERTIFICATIONS

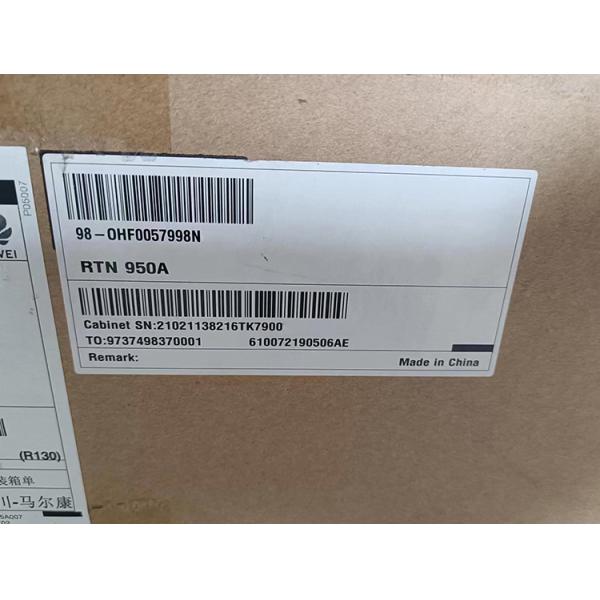

PACKING& DELIVERY

1. Who are we?
We are based in Beijing, China, start from 2023,sell to Domestic Market(60.00%),North America(20.00%),South America(10.00%),Western Europe(10.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. What can you buy from us?
Microwave Equipment, Data Communication Equipment, Transmission Equipment, Storage Device, Server

4. Why should you buy from us not from other suppliers?
Microwave equipment:RTN910A/RTN905F/RTN950/RTN950A/RTN980/RTN980L/RTN320F/RTN380AX; Wavelength division equipment:OSN9800/OSN9600/ONS8800; OLT:MA5800X2/X7; Switch:S9310X/CE6881-48S6CQ-B/CE8851-32CQ8DQ-P/CE6863E-48S6CQ. OceanStor Dorado 6000 V6/2288H V6/5288V6

5. What services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
