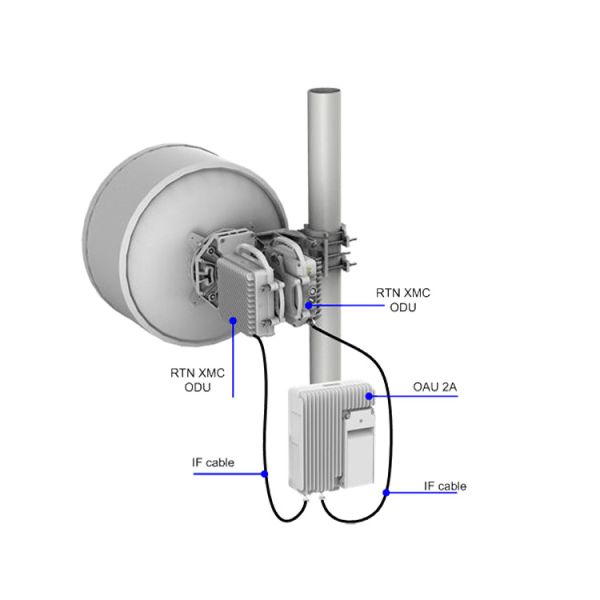

The RTN 320 integrates all of its functions into a compact outdoor chassis that can be mounted on a pole, thereby achieving zero footprint in terms of installation space. The RTN 320 can work with an extended ODU to provide two microwave directions.
Therefore, the RTN 320 helps lower network construction costs and operating expenses.
The RTN 320 supports flexible networking. RTN 320s can form ring or chain backhaul networks for IP base stations.

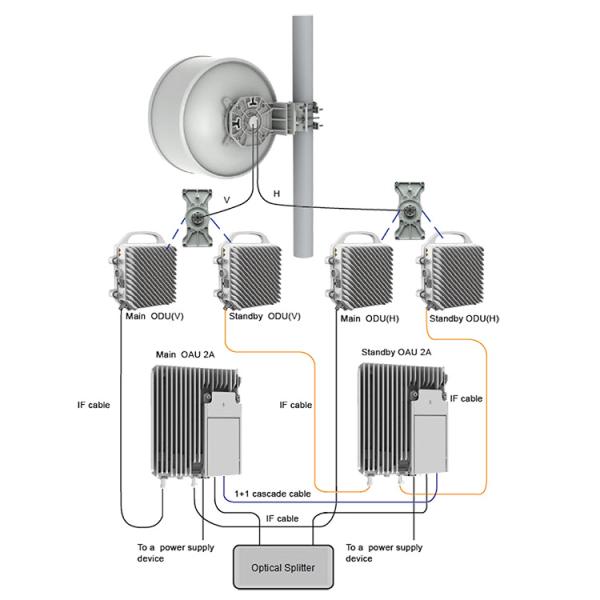

The RTN 320 supports 4096QAM, 112 MHz channel spacing, XPIC, PLA/EPLA, MIMO,and 1+1 HSB/FD/SD. With such capabilities, the RTN 320 provides high-bandwidth backhaul links for high-capacity 3G/LTE base stations.
On mobile communication networks, the RTN 320 can:
1. Operate independently to form ring or chain backhaul networks to provide links with high capacity, bandwidth, and reliability for 3G/LTE base stations.
2. Work with the ATN to provide a microwave channel solution for transparent transmission on the IP radio access network (IP RAN).
3. Work with the RTN 380H housing MXXI5 boards to form a full-outdoor Super Dual Band solution. With this solution, zero footprint as well as large-bandwidth and long-distance mobile backhaul links can be provided. This solution applies to tail sites without outdoor cabinets or equipment rooms.
1. Operate independently to form ring or chain backhaul networks to provide links with high capacity, bandwidth, and reliability for 3G/LTE base stations.
2. Work with the ATN to provide a microwave channel solution for transparent transmission on the IP radio access network (IP RAN).
3. Work with the RTN 380H housing MXXI5 boards to form a full-outdoor Super Dual Band solution. With this solution, zero footprint as well as large-bandwidth and long-distance mobile backhaul links can be provided. This solution applies to tail sites without outdoor cabinets or equipment rooms.
