RTN380 Microwave 71-76GHz 81-86GHz OptiX RTN F81210000ALA 52450608 SLEMSITE17 02312MHV

Ask Lasest Price
Model Number :	RTN 380
Brand Name :	HW
Price :	$1,000.00 - $1,300.00/sets

Add to Cart

Product Details
Company Profile

RTN380 Microwave 71-76GHz 81-86GHz OptiX RTN F81210000ALA 52450608 SLEMSITE17 02312MHV

PRODUCT DESCRIPTION

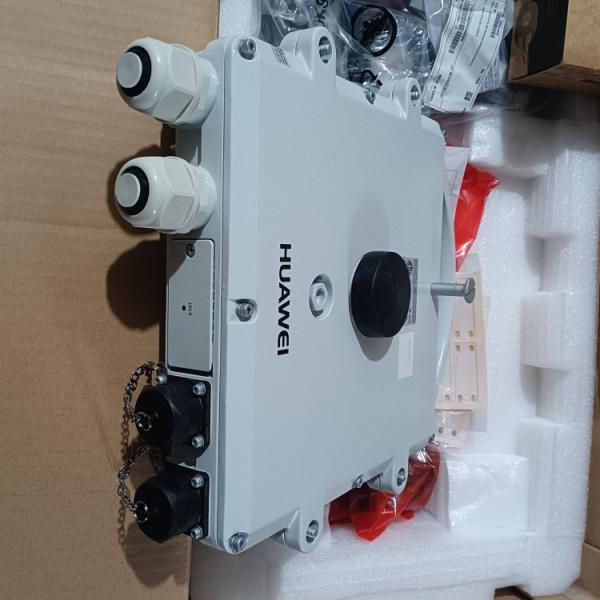

Long Range Microwave Transmission Equipment Assembly RTN 380 Series

Huawei's E-Band microwave products series (RTN 380/380H) works at the 71-86 GHz millimeter-wave band, which has plentiful spectrum resource at a low cost. With up to 10 Gbit/s ultra-large transmission capacity, these products are suitable for high-bandwidth IP service aggregation. Full-outdoor weatherproofing and simplified O&M features make this product series ideal for dense deployment in urban areas, and meet the requirements for broadband wireless transmission in various scenarios, such as enterprise private line interconnection and ISP fixed broadband backhaul.

TECHNICAL SPECIFICATION

Specifications	RTN 380A	RTN 380AX(DC+P&E)	RTN 380AXH
Frequency	71～76/81～86GHz
Channel Bandwidth	62.5~/1000 MHz	62.5~2000 MHz	62.5~2000 MHz
Max. Throughput	7.5Gbps	10Gbps	10Gbps
Modulations Schemes	BPSK~512QAM	BPSK~1024QAM	BPSK~1024QAM
Service Interface	210GE(SFP)+2GEe	310GE(SFP)+1GEe	410GE(SFP)+1GEe
Tx Power @QPSK	18 dBm	18 dBm	26 dBm
Super Dual Band	Yes	Yes	Yes
L3 VPN	No	Yes	Yes
eCPRI Support	Not support	Support 10G eCPRI	Support 10G eCPRI
XPIC Support	Not support	Yes	Yes
Power Consumption	39W (typical)	49W (typical)	69W (typical)
Dimensions	26528573mm	26532073 mm	26532083 mm
Power Supply	P&E	DC + P&E with Redundancy	DC + P&E with Redundancy
